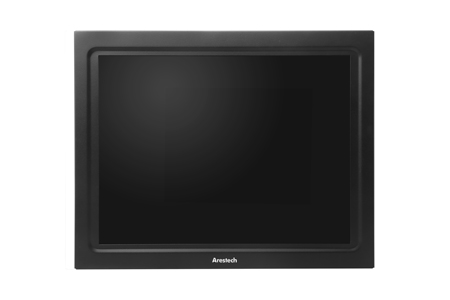

TPM-3117/3217


Industrial 17" LED Projected Capacitive Multi-touch Display

Arestech's ultra-slim LED display utilizes an industrial grade panel that provides 50,000 hours of operational life.The TPM-3217 offers a variety of touch solutions (5-wire resistive and projective capacitive), and optional open frame display design allows customers to integrate TPM-3217 into different environments. In addition, the TPM-3217 is equipped with a projective capacitive touchscreen that supports multi-touch gestures, fast touch screen response, high surface hardness and screen light resistance. The TPM-3217 provides more convenience in industrial automation, medical, digital signage, home and office automation applications.

Features

  • 17" LED SXGA LCD panel supports up to 1280 x 1024 resolution
  • LED backlighting provides 20~30% power savings
  • 5-wire resistive / projected capacitive touch technology
  • 12~24 V DC power input pluggable terminal block

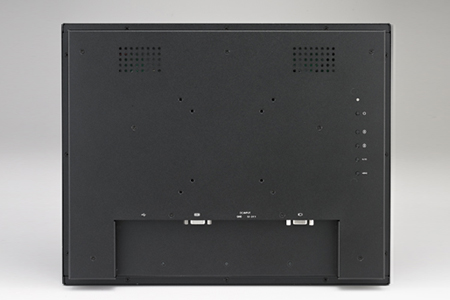

  • Panel and VESA mounting
  • Combined touch interfaces: RS-232 and USB
  • Simple, elegant design with IP54 front panel protection
  • -20~60° C operating temperature
  • Windows 2000 / XPE / CE / 7 / 8 and Linux driver support

Applications

  • Embedded HMI Display System
  • Factory / Manufacturing Automation
  • ATM / Self-service / Kiosk Applications
  • Vending / Ticketing Machines

規格表

型號 TPM-3217P TPM-3217R
Display Panel Size 17” LED LCD Panel
Resolution 1280 x 1024 (SXGA)
Viewing Angle 85 x 85 (H), 80 x 85 (V)
Brightness 350 (cd/m2)
Color Support 16.7 M
Contrast Ratio 1000:1
Response Time 30 [msec]
Touchscreen Touchscreen Type Projected Capacitive 5-Wire Resistive
Surface Hardness 7H 3H
Durability - 10 million touches
Transparency 90%(±3%) 80% (±3%)

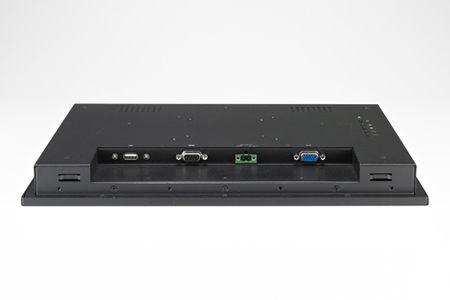

I/O Interface Video Interface 1 x VGA
Touch Interface 1 x USB, 1 x RS-232
OSD Control Function Key 5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off
Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power Power Connector Pheonix Terminal Block, 2 pins
Power Input 12~24V DC input, Single Power Source
Power Consumption Typical: 22W
Environment Operating Temperature -20~60° C (-4~140° F)
Storage Temperature -30~70° C (-22~158° F)
Humidity 5~95% @ 40° C, Non-condensing
Vibration 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General Dimensions (W x H x D) 411.4 x 337.5 x 40.0 mm (16.19”x 13.28”x 1.57”)
Weight 4.82kg (10.6 lb)

產品列表

內容
1 x TPM-3217
1 x Driver CD
1 x USB Cable
1 x VGA Cable
6 x Panel Mounting Screws

訂單資訊

料號 內容
TPM-3217P-A1E 17” SXGA Industrial LED Ultra-slim Projected Capacitive Multi-touch Monitor
TPM-3217R-A1E 17” SXGA Industrial LED Ultra-slim Resistive Touch Monitor

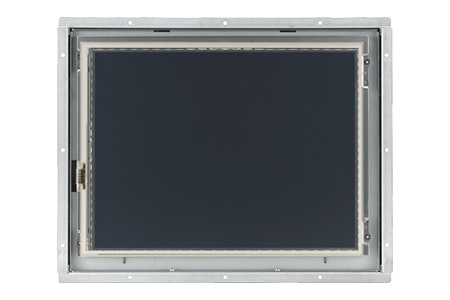

TPM-3117R-A1E 17” SXGA Industrial LED Ultra-slim Resistive Touch Open frame

選配項目

料號 內容
ACS-PS-60W AC-to-DC 12 V @ 5 A, 60 W power adapter,
0~40° C for office & home use
ACS-PS-60W-WT AC-to-DC 24 V @ 2.62 A, 63 W power adaptor, -20~60° C
ACS-PS-US Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN Power cable: 3-pin, 180 cm (China)
ACS-A812 LCD VESA Table Stand

型錄

檔案類型 檔案描述 檔案名稱 檔案大小
PDF Datasheet of TPM-3217 (English) DS_Arestech_TPM-3217.pdf 1.5 MB
PDF Datasheet of TPM-3217
(Traditional Chinese)		 DS_Arestech_TPM-3217_ch.pdf 1.4 MB
PDF Datasheet of TPM-3217
(Simplified Chinese)		 DS_Arestech_TPM-3217_cn.pdf 1.4 MB
