TPM-3221

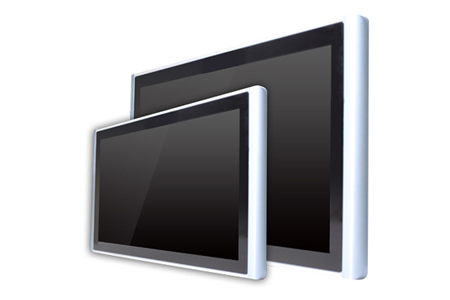

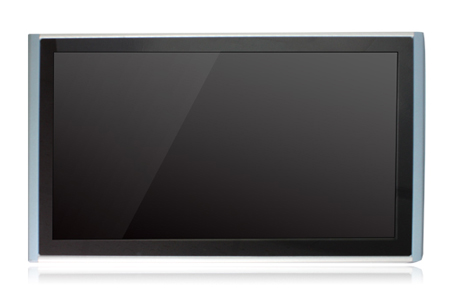

Industrial 21.5” Full HD LED multi-touch monitor, supporting Windows 8 / Windows 7 gestures plus VGA/DVI/HDMI interfaces

Arestech's TPM-3221 is an industrial grade LED full high definition (FHD) multi-touch monitor , support up to 1920 x 1080 resolution and 50,000 hours of operational life for the LED display. The multi-touch screen needs practically no force to perform tasks on the display and provides optimum durability and transparency. Additionally, the VGA /DVI / HDMI interfaces are ideal for supporting various applications.

Features

LED backlight provides 20~30% power saving
Resolution supports up to 1920 x 1080 (FHD)
Project capacitive multi-touch screen
Windows 7 gestures supports
Screen Hardness : Mohs 7
90% of transparency provides clear image
Simple , elegant ID design with IP54 front panel protection

Applications

Industrial HMI Display System
ATM/Self-service/Kiosk Applications
Vending Machine / Ticketing Machine
Point-of-information Terminals
Factory / Manufactory Automation

規格表

型號		TPM-3221
Display	Panel Size	21.5” LED LCD Panel
	Resolution	1920 x 1080 resolution (FHD)
	Viewing Angle	85 x 85 (H), 80 x 80 (V)
	Brightness	250 (cd/m2)
	Color Support	16.7 M
	Contrast Ratio	1000:1
	Response Time	5 [msec]
Touchscreen	Touchscreen Type	Projected capacitive multi-touch screen
	Surface Hardness	7H
	Transparency	90% (±3%)

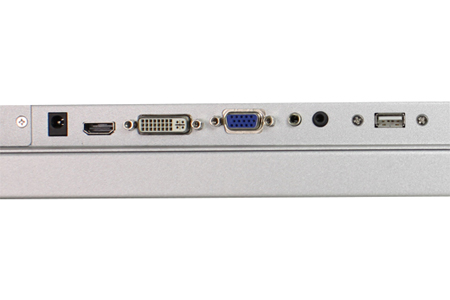

I/O Interface	Video Interface	1 x VGA, 1 x DVI-D, 1 x HDMI
I/O Interface	Touch Interface	1 x USB
OSD Control	Function Key	5 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Color Adjust, Color Temp, Auto Color, Language
Power	Power Connector	DC Jack
	Power Input	12V DC input
	Power Consumption	Typical: 16W
	Power Adapter	40 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5A MAX output
Environment	Operating Temperature	0~50° C (32~122° F)
	Storage Temperature	-30~70° C (-22~158° F)
	Humidity	5~95% @ 40° C, non-condensing
	Vibration	5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
General	Dimensions (L x W x H)	558.1 x 323.8 x 42.8mm (21.97” x 12.74” x 1.68”)
General	Weight	4.95Kg (10.89 lb)

產品列表

內容

TPM-3221P-A1E

1 x USB Cable

1 x VGA Cable

1 x Power Adapter (AC-to-DC 12 V @ 3.3 A, 40 W)

訂單資訊

料號	內容
TPM-3221P-A1E	21.5” FHD Industrial LED Projected Capacitive Multi-touch Monitor

選配項目

料號	內容
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)
ACS-A812	LCD VESA Table Stand

型錄

檔案類型	檔案描述	檔案名稱	檔案大小
PDF	Datasheet of TPM-3221 (English)	DS_Arestech_TPM-3221.pdf	1.3 MB
PDF	Datasheet of TPM-3221 (Traditional Chinese)	DS_Arestech_TPM-3221_ch.pdf	1.4 MB
PDF	Datasheet of TPM-3221 (Simplified Chinese)	DS_Arestech_TPM-3221_cn.pdf	1.4 MB
