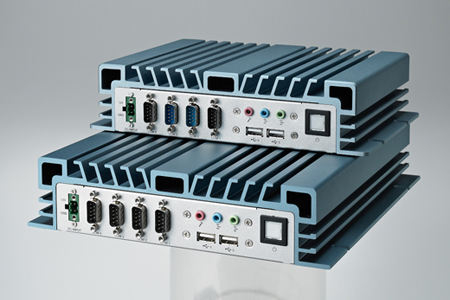

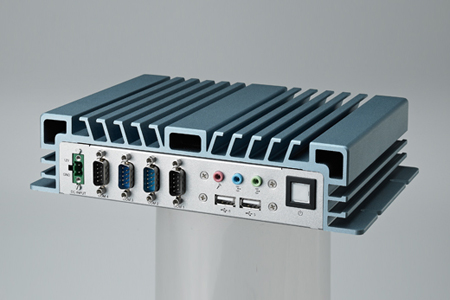

Compact & Fanless Embedded Box PC with Intel? Atom? D2550 Dual Core Processor with Multiple I/O

BPC-5010 is a fan-less Box PC which is ideal for embedded and automation applications. This embedded hardware platform is designed with Intel? Atom? Processor D2550 is the first Atom? processor designed to support DDR3 SDRAM and runs at a faster speed of 1.86 GHz while still maintaining the same low power consumption and attractive price point. Also, BPC-5010 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Transportation, Surveillance and Automation.

Features

Slim & Compact Design for space-saving (238x165x55 mm)
Intel? Atom? Processor D2550 (1M Cache, 1.86GHz)
DDR3 800/1066 MHz SODIMM up to 4GB

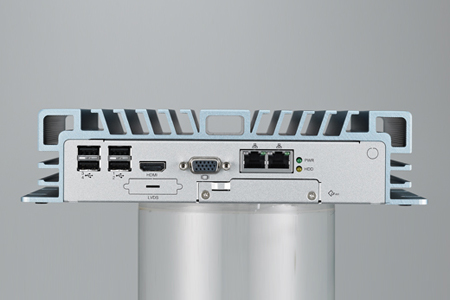

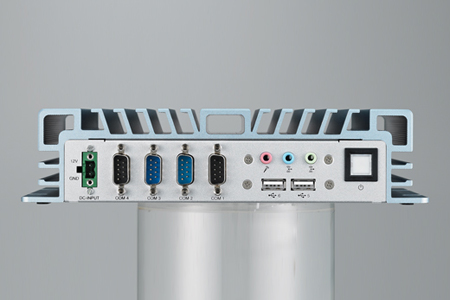

2 x GbE, HD Audio, 6 x USB, 4 x COM, 1 x mini PCIe, VGA & HDMI connectors
Support 1 x mSATA, 1 x CFast slot
-20° C ~ 60° C operating temperature
Simple, elegant design with IP40 protection

Applications

Embedded Control System
ATM / Self-service / Kiosk Applications
Warehouse Management
Machine Automation

規格表

型號		BPC-5010
Processor System	CPU	Intel Atom Dual Core processor D2550 1.86GHz
	Frequency	Dual Core up to 1.86GHz
	L2 Cache	1 MB
	System Chipset	Intel NM10
	BIOS	AMI EFI 16 Mbit
Memory	Technology	DDR3 1066 MHz
	Max. Capacity	4 GB
	Socket	1 x 204-pin SODIMM
Display	Graphics Engine	DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG-2 H/W Decode/Acceleration: H.264 / VC1/ WMV9
	VGA	Up to 1920 x 1200
	HDMI	Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p
	Dual Display	VGA + HDMI, HDMI + LVDS1(optional), VGA + LVDS1(optional)
I/O Interface	USB	6 x USB 2.0
	Serial Port	4 x COM, 2x RS-232 & 2x RD-232/422/485 (RD-485 support Autoflow control)
	GPIO	8-bit programmable GPIO (optional)
Ethernet	Controller	Dual GbE, 10/100/1000Mbps (Intel 82583V)
Audio	Chipset	Realtek ALC892, Realtek ALC892, High Definition Audio (HD)
Audio	Connectors	Line in, Line out, Mic in
Storage	CFast	N/A
Storage	mSATA	1
Power	Power Type	AT / ATX
	Power Supply Voltage	Single 12 V Input
	Power Consumption (Typical)	0.606 A @ 12 V (10.5 W)
	Power Consumption (Max)	0.729 A @ 12 V (12.6 W)
	Power Adaptor	AC-to-DC, 12 V @ 5 A, 60 W
Environment	Operational	-20 ~ 60° C (-4 ~ 140° F) with I-grade cFast, & 0~40° C (32 ~ 104° F) w/ mSATA(Commercial Temperature Range : 0 ~ 70° C @ 95% RH Non-Condensing)
	Non-Operational	-40~85° C and 60° C @ 95% RH Non-condensing
	Vibration	5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. (w/ cFast only)
	Shock	50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ cFast only)
Safety	EMC	CE, FCC Class A
Physical Characteristics	Dimensions (W x H x D)	238 x 55 x 165 mm (9.37” x 2.16” x 6.5”)
Physical Characteristics	Weight	1.7 Kg (3.74 lb)

產品列表

內容

1 x BPC-5010

1 x Driver CD

1 x Startup Manual

訂單資訊

料號	內容
BPC-5010-A2E	Intel? D2550 1.86 GHz Processor, w/ HDMI, VGA, 6 x USB 2.0, 4 x COM, 2 x GbE, mSATA

選配項目

料號	內容
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)

型錄

檔案類型	檔案描述	檔案名稱	檔案大小
PDF	Datasheet of BPC-5010 (English)	DS_Arestech_BPC-5010.pdf	1.5 MB
PDF	Datasheet of BPC-5010 (Traditional Chinese)	DS_Arestech_BPC-5010_ch.pdf	1.5 MB
PDF	Datasheet of BPC-5010 (Simplified Chinese)	DS_Arestech_BPC-5010_cn.pdf	1.6 MB
