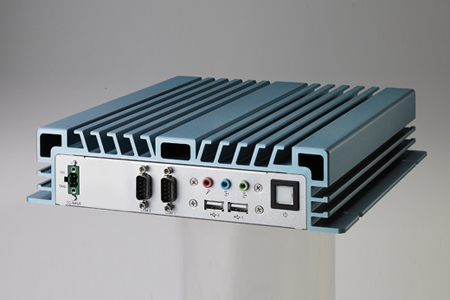

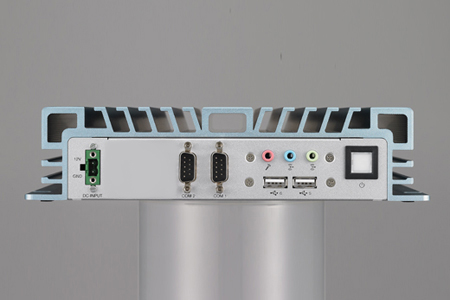

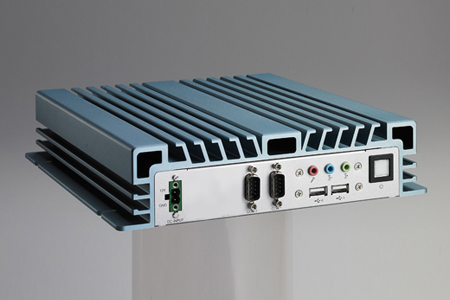

BPC-5050 (Ivy Bridge)


Fanless Embedded Box with 3rd Gen. Intel? Core? i7 Dual-Core Processor & Multiple I/O

The BPC-5050 fanless Box PC is ideal for video/graphic and automation control applications. This fanless, embedded ultra-low power platform is designed with an Intel? Core i7? processor which is the 3rd generation Intel? Core? processor designed with triple-display support, and Dual-Core Technology speeds up to 2.5 GHz while maintaining the same low power consumption and powerful computing ability. The BPC-5050 has a highly reliable chassis with a thermally-enhanced ripple fin design offering great thermal performance (-20~60°C) while also integrating anti-vibration and shock resistance. The BPC-5050 is the ideal fanless Box PC controller for use with digital signage, surveillance, image processing, or machine automation industries.

Features

  • Intel? Core? i7 processor up to 2.5 GHz (4M L3 Cache, i7 2.5 GHz)
  • DDR3 1333 / 1600 MHz SO-DIMM up to 8 GB
  • Triple display support: VGA, HDMI, LVDS
  • 2 x GbE, HD Audio, 2 x USB 3.0, 4 x USB 2.0 , 2 x COM, 2 x mini PCIe (1 x half-size, 1 x full-size)
  • 1 x 2.5” SATA HDD & 1 x mSATA (full-size mini PCIe)
  • -20~60° C operating temperature

Applications

  • Embedded Digital Signage Control Systems
  • Factory Automation Applications
  • Image Processing (e.g. AOI)
  • Machine Automation
  • Transportation Management

規格表

型號 BPC-5050
Processor System CPU Intel Core? i7 3555LE 2.5 GHz
L3 Cache 4 MB (i7 3555LE)
System Chipset Intel QM77
BIOS AMI EFI 64Mbit
Memory Technology DDR3 1333/1600 MHz
Max. Capacity 8GB
Socket 1 x 204-pin SO-DIMM
Display Chipset Intel QM77
Graphic Engine DirectX 11 and OpenGL3.1 support
H/W Decode/Acceleration: H.264/ VC1/ MPEG2
VGA Up to 2048 x 1536 @ 75 Hz
HDMI 1920 x 1200, HDMI v1.4 up to 1080p
Dual Display VGA + HDMI
I/O Interface USB 2 x USB 3.0, 4 x USB 2.0
Serial Port 2 x COM, 1 x RS-232, 1 x RD-232/422/485 (RD-485 supports autoflow control)
GPIO 8-bit programmable GPIO (optional)
Ethernet Controller Dual GbE, 10/100/1000 Mbps (Intel 82579LM / 82583V)
Audio Chipset Realtek ALC892, High Definition Audio (HD)
Connector Line in, Line out, Mic in
Storage mSATA 1 x mSATA on full size mini PCIe
SATA 1 x SATA III (Max. Data Transfer Rate 600 MB/s)
Expansion miniPCIe 1 x full-size mini PCIe, 1 x half-size mini PCIe
Power Power Type AT / ATX
Power Supply Voltage Single 12V input
Power Consumption (Typical) 2.356A @ 12V, 28.27W (2.5 GHz)
Power Consumption (Max) 2.896A @ 12V, 34.75W (2.5 GHz)
Power Adaptor AC-to-DC, 12 V @ 5 A, 60 W
Environment Operational -20~60° C (-4~140° F) with I-grade SSD, 0~40° C (32~104° F) w/ 2.5” HDD
(Operational humidity: 40° C @ 95% RH Non-condensing)
Non-operational -40~85° C @ 95% RH Non-condensing
Vibration

5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w/ SSD only)
1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x, y, z 3 axes (w /2.5” HDD)
Shock 50G, IEC 60068-2-27, half sine, 11 ms duration (w/ SSD only)
20G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Safety EMC CE, FCC Class A
Physical Characteristics Dimensions ( WxHxD) 238 x 55 x 245 mm (9.37” x 2.16” x 9.64”)
Weight 3.5 kg (7.7 lb)

產品列表

內容
1 x BPC-5050-A1E
1 x Driver CD
1 x Startup Manual

訂單資訊

料號 內容
BPC-5050-D6A1E Intel? Core i3-3217UE Dual-Core 1.66 GHz Processor, embedded w/ HDMI, VGA, 2 x USB 3.0, 4 x USB 2.0, 2 x COM, 2 x GbE
BPC-5050-U5A1E BPC-5050-U5A1E Intel? Core i7-3555LE Dual-Core 2.5 GHz Processor, embedded w/ HDMI, VGA, 2 x USB 3.0, 4 x USB 2.0, 2 x COM, 2 x GbE

選配項目

料號 內容
ACS-PS-60W AC-to-DC 12 V @ 5 A, 60 W power adapter, 0~40° C for office & home use
ACS-PS-US Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN Power cable: 3-pin, 180 cm (China)

型錄

檔案類型 檔案描述 檔案名稱 檔案大小
PDF Datasheet of BPC-5050 (English) DS_Arestech_BPC-5050.pdf 1.5 MB
PDF Datasheet of BPC-5050 (Traditional Chinese) DS_Arestech_BPC-5050_ch.pdf 1.6 MB
PDF Datasheet of BPC-5050 (Simplified Chinese) DS_Arestech_BPC-5050_cn.pdf 1.7 MB
