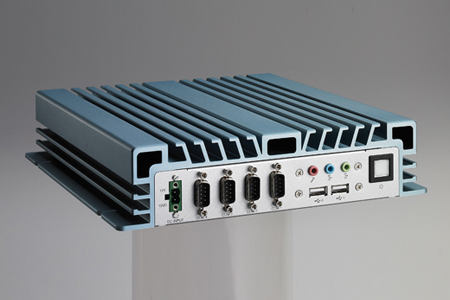

BPC-5030

Fanless Embedded Box PC with AMD G-Series T56N 1.65 GHz Dual-Core Processor with Multiple I/O

The BPC-5030 fanless Box PC is ideal for embedded and automation applications. This embedded hardware platform is designed with the AMD T56N processor, and supports DDR3 SDRAM that runs at 1.65 GHz while maintaining the same low power consumption and attractive price point. The BPC-5030 also has a rugged case designed to protect against electromagnetic interference, extremes of cold and heat, and highlights a passive cooling design for quiet, fanless operation ideal for the transportation, surveillance and automation industries.

Features

AMD T56N Processor (1M Cache, 1.65 GHz)
DDR3 1333 MHz SO-DIMM up to 4 GB
2 x GbE, HD Audio, 6 x USB, 4 x COM, 1 x mini PCIe, VGA & HDMI
Supports 1 x 2.5” SATA HDD & 1 x CFast slot
-20~60° C operating temperature
Simple, elegant design with IP54 front panel protection

Applications

Embedded Control Systems
ATM / Self-service / Kiosk Applications
Warehouse Management
Machine Automation

規格表

型號		BPC-5030
Processor System	CPU	AMD G-Series T56N
	Frequency	1.65 GHz Dual-Core
	L2 Cache	1 MB
	System Chipset	AMD G-Series + A50M FCH
	BIOS	AMI EFI 32 Mbit
Memory	Technology	DDR3 1066 MHz
	Max. Capacity	4 GB
	Socket	1 x 204-pin SO-DIMM
Display	Chipset	AMD G-Series
	Graphics Engine	DirectX? 11 graphics with UVD 3.0 2D Acceleration, 3D Acceleration, Motion Video Acceleration, DVD, Blu-ray*Hardware decode (UVD 3):H.264, VC-1 & MPEG2
	VGA	Up to 2560 x 1600
	HDMI	1920 x 1080p at 60 Hz, 36 bpp, HDMI v1.3, using TMDS data encoding
	Dual Display	VGA+LVDS
I/O Interface	USB	6 x USB 2.0
	Serial Port	4 x COM, 3 x RS-232, 1 x RS-232/422/485 (RS-485 supports auto-flow control)
	GPIO	8-bit programmable GPIO (optional)
Ethernet	Controller	GbE1: Realtek RTL8111E-VB-GR 10/100/1000 Mbp, GbE2: Realtek RTL8111E-VB-GR 10/100/1000 Mbp
Audio	Chipset	Realtek ALC892, High Definition Audio (HD), Line in, Line out, Mic in
Audio	Amplifier	Optional via MIOe
Storage	CFast	1
	mSATA	mSATA or full size Mini PCIe (default) selected by BIOS
	SATA	1 x SATA II (Max. Data Transfer Rate 300 MB/s)
Power	Power Type	Single 12V DC power input
	Power Supply Voltage	Single 12V input (±10%)
	Power Consumption (Typical)	0.606 A @ 12 V (10.5 W)
	Power Consumption (Max)	0.729 A @ 12 V (12.6 W)
	Power management	ACPI
	battery	Lithium 3 V / 210 mAH
Environment	Operational	-20~60° C (-4~140° F) (Operational humidity: 40° C @ 95% RH Non-condensing)
	Storage	-40~85° C and 60° C @ 95% RH Non-condensing
	Vibration	5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. (w/ cFast only) 1 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 Oct/min., 1hr/axis, x,y,z 3 axes. (w/ 2.5” HDD)
	Shock	50 G, IEC 60068-2-27, half sine, 11 ms duration (w/ cFast only) 20 G, IEC 60068-2-27, half sine, 11 ms duration (w/ 2.5” HDD)
Certificate	EMC	CE, FCC Class A
Physical Characteristics	Dimensions (L x W)	238 x 55 x 245 mm (9.37” x 2.16” x 9.64”)
Physical Characteristics	Weight	3.0 kg (6.6 lb)

產品列表

內容

1 x BPC-5030-A1E

1 x Driver CD

1 x Startup Manual

訂單資訊

料號	內容
BPC-5030-A1E	AMD T56N Dual-Core 1.65 Ghz Processor, Embedded box PC w/ HDMI, VGA, 6 x USB, 4 x COM,2 x GbE

選配項目

料號	內容
ACS-PS-60W	AC-to-DC 12 V @ 5 A, 60 W power adapter, 0~40° C for office & home use
ACS-PS-US	Power cable: 3-pin, 180 cm (USA)
ACS-PS-EU	Power cable: 3-pin, 180 cm (Euro)
ACS-PS-CN	Power cable: 3-pin, 180 cm (China)

型錄

檔案類型	檔案描述	檔案名稱	檔案大小
PDF	Datasheet of BPC-5030 (English)	DS_Arestech_BPC-5030.pdf	1.4 MB
PDF	Datasheet of BPC-5030 (Traditional Chinese)	DS_Arestech_BPC-5030_ch.pdf	1.5 MB
PDF	Datasheet of BPC-5030 (Simplified Chinese)	DS_Arestech_BPC-5030_cn.pdf	1.6 MB
